Advanced Oral Transmucosal Delivery Platform for ODF and Sublingual Film Products
HarmonyFilm™ is Atrium’s oral thin film technology platform built to improve solubility, bioavailability, and ease of use for brands developing advanced supplement and therapeutic delivery formats. As a USA contract manufacturer for ODF and sublingual film products, we developed HarmonyFilm™ specifically for brands that need a versatile, orally dissolvable film platform with optimal release profiles — backed by ongoing in-house research and formulation development.

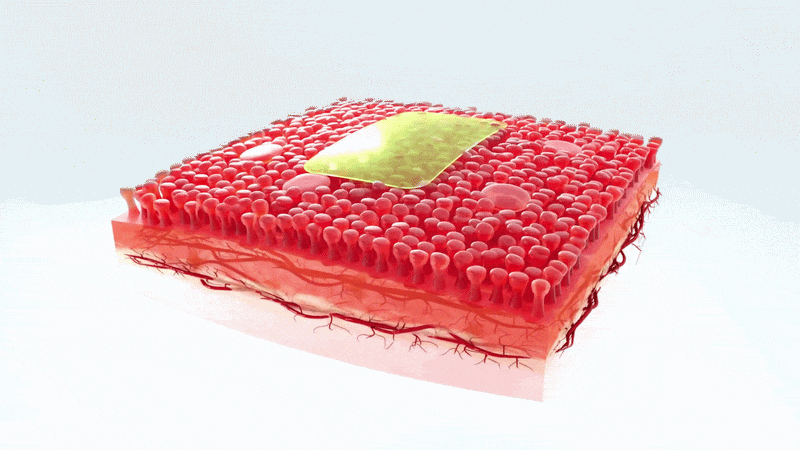

Each HarmonyFilm™ product is approximately the size of a postage stamp and delivers therapeutic actives through the oral mucosal tissue either sublingually or buccally. This oral transmucosal delivery route is non-invasive and allows active ingredients to be absorbed directly into the vascularized tissue in the mouth, bypassing the hepatic first pass effect. The result is reduced systemic drug exposure and a faster onset of action compared to conventional oral dosage forms.
Active ingredients within HarmonyFilm™ can be formulated as water-soluble compounds or encapsulated for more effective absorption and sustained release. Because orodispersible films dissolve rapidly without water, they improve user compliance across a wide range of consumers — particularly children and individuals who have difficulty swallowing traditional tablets or capsules.
Which Active Ingredients Work Best in Oral Thin Films and Sublingual ODF Formats
Oral thin films work best when the active ingredient is low-dose. The active ingredients in films are often incorporated as solid dispersions/nanosuspensions / micronized powders and are typically ~5–30% by weight of the film matrix.
Best-fit categories:
High-Potency Micronutrients
Examples: vitamin B12, folate, biotin, vitamin D3 / K2, iodine/selenium (trace minerals).
Typical workable dose: ~0.05–10 mg.
Fast-Onset Functional Ingredients for Sublingual and Buccal ODF Films
Fast-onset “functional” actives that are effective at low doses
Examples: melatonin, caffeine, certain nootropic alkaloids/extract actives.
Typical workable dose: ~1–70 mg.
Standardized Plant Extracts Suitable for Oral Dissolving Film Formats
Examples: high-potency standardized extracts.
Typical workable dose: ~10 – 70 mg (higher loads often make films gritty/bitter).
Lipophilic Actives — Solubilized and Complexed for OTF Compatibility
Examples: certain terpenes, fat-soluble vitamins, CoQ10-type actives with solubilization (emulsified/complexed) to avoid crystallization.
Typical workable dose: ~1–70 mg.
Peptides and Fragile Actives — Protected and Encapsulated for ODF Delivery
Feasible when low dosage and protected/encapsulated.
Typical workable dose: mcg to low mg.
Active Ingredients That Are Not Suitable for Oral Thin Film Manufacturing
High-dose minerals (Ca, K) and “gram-dose” amino acids.
Bulky botanicals that need 300–1000 mg per dose.
Key Benefits of HarmonyFilm Sublingual ODF Films for Brands and End Users
- No Unpleasant Aftertaste, Unlike Pills
- Direct Absorption into the Bloodstream
- No Need for Water or Swallowing
- Precise Dosing + Faster Onset
- Discreet
- Available in any Flavor
- Multiple Actives Up to 150mg
- Potential for Reduced Side-Effects with a Lower Dose
HarmonyFilm Sublingual ODF Customization
- Tunable Film Dissolution Speed
- Customizable Mucoadhesion and Film Adhesion
- Advanced Bitter Masking Technology
- Full Customization from Form Factor to Packaging
- Active Ingredient Compatibility Across a Wide Range of Compounds
- Low MOQ of Only 50,000 Units to Help Jumpstart Your Brand
What Atrium’s Custom ODF Manufacturing System Delivers for Your Product

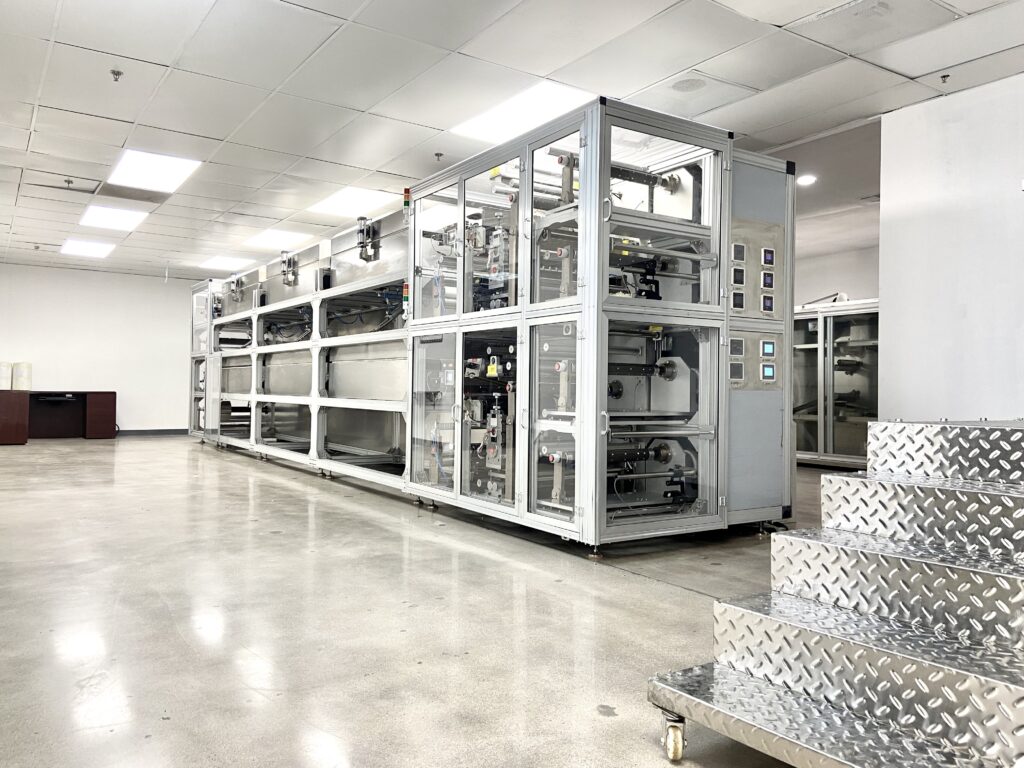

When U.S. brands come to Atrium Scientific as their oral thin film contract manufacturer, they get more than a production line — they get a fully engineered ODF manufacturing system built around consistency, accuracy, and commercial-scale output. Our orodispersible film and OTF manufacturing capabilities are designed to handle complex formulations while maintaining the process discipline that cGMP-compliant production demands.
Our custom ODF manufacturing system delivers:
- Multi-Formulation Run — Our system supports multiple formula variants within the same production environment, giving brands the flexibility to develop and scale different OTF products without rebuilding the process from scratch
- Precision-Engineered Drying — Controlled drying profiles ensure uniform moisture content across every film batch, which is critical for both dissolution performance and long-term stability
- Guaranteed Dosage Accuracy — Every oral thin film we produce meets strict content uniformity standards, so each dose delivers exactly what your formula specifies
- Film Integrity and Fast Dissolving — Our sublingual ODF films are engineered for consistent thickness, tensile strength, and fast disintegration to meet the performance expectations of both brands and end users
- Fully Automated Production — Our automated OTF manufacturing line reduces human error and maintains batch-to-batch consistency at every stage of the process
- High Production Output — Built for commercial scale, our system supports both low MOQ pilot runs and full production volumes for U.S. brands at any stage of growth
- Computer-Aided Automatic Film Alignment — Precision alignment technology ensures every film is cut, positioned, and packaged to exact specifications, reducing waste and improving yield
